Ginko

Multiple optics for flexible creation

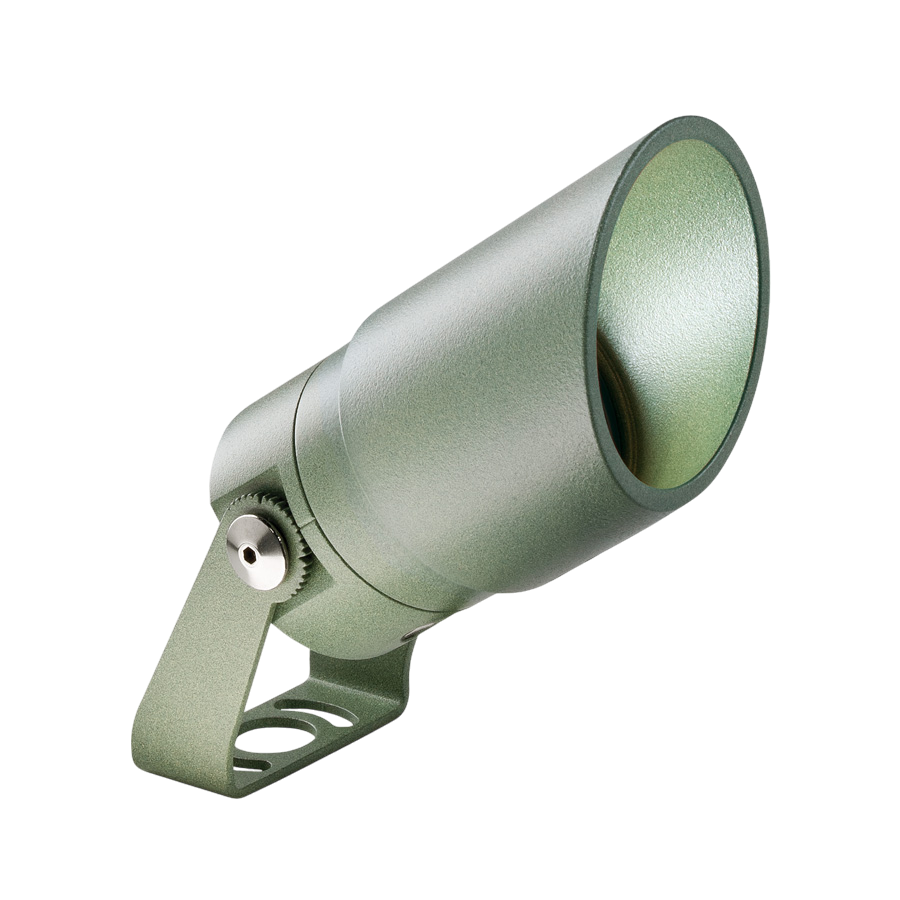

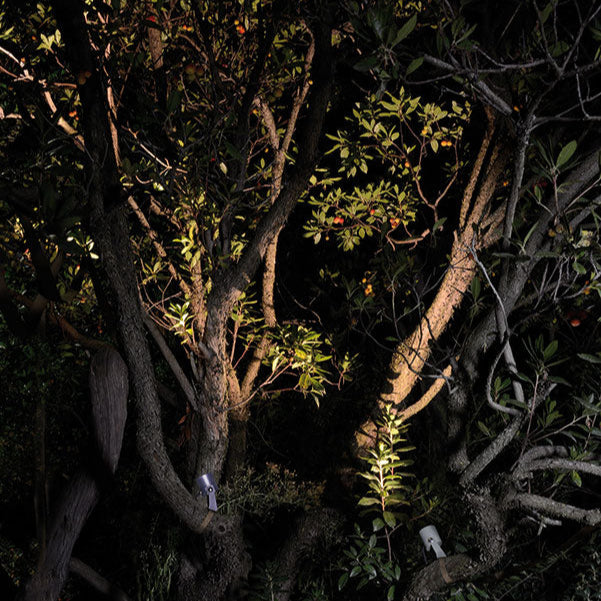

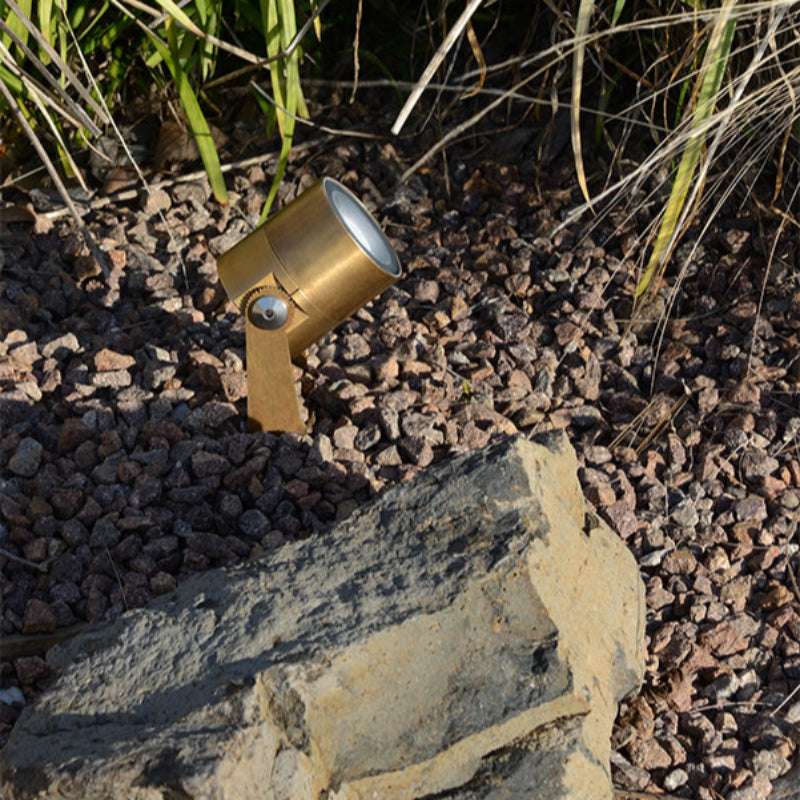

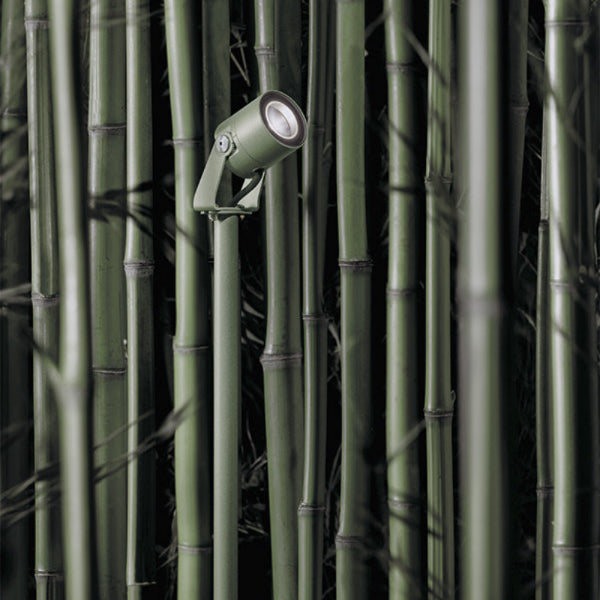

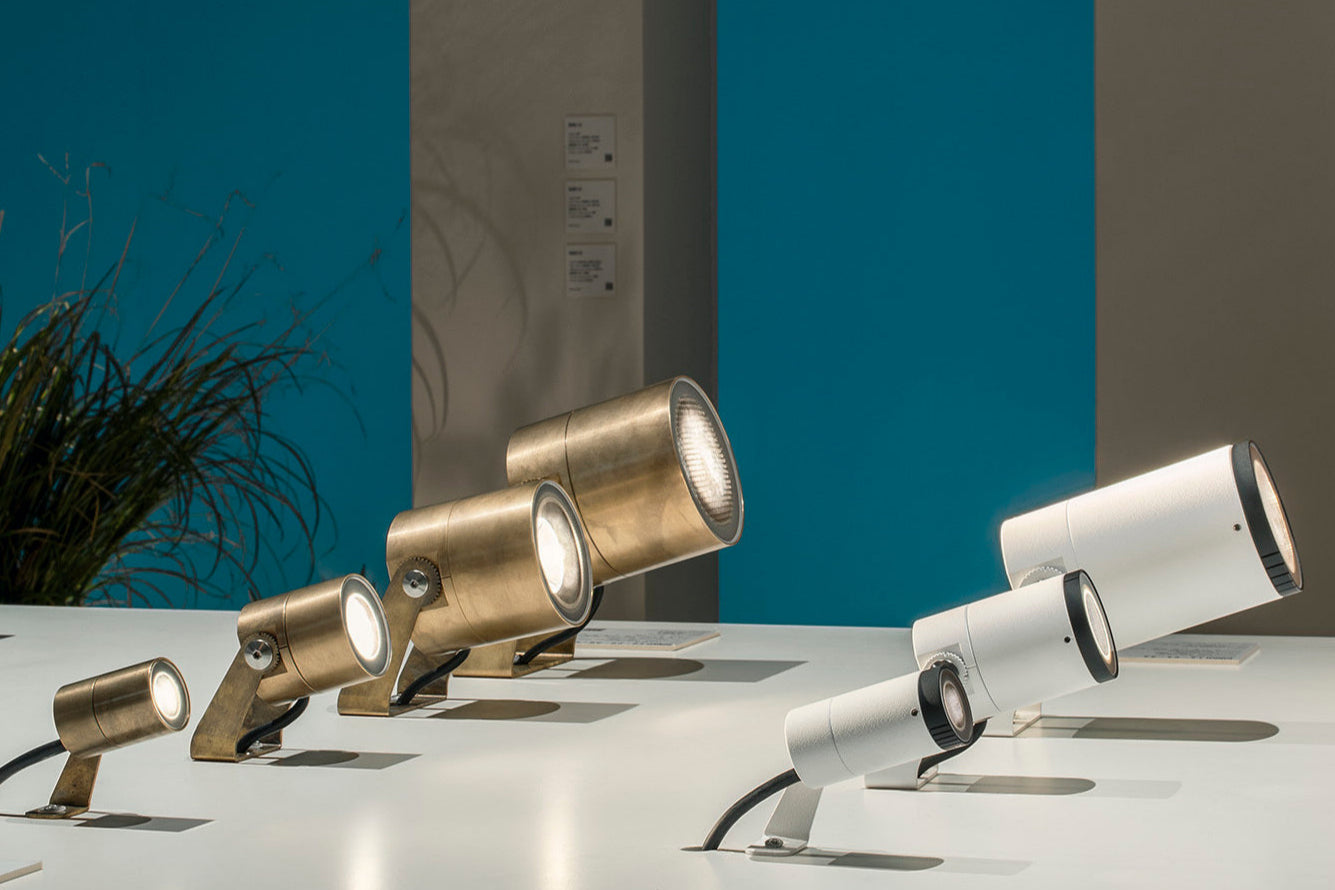

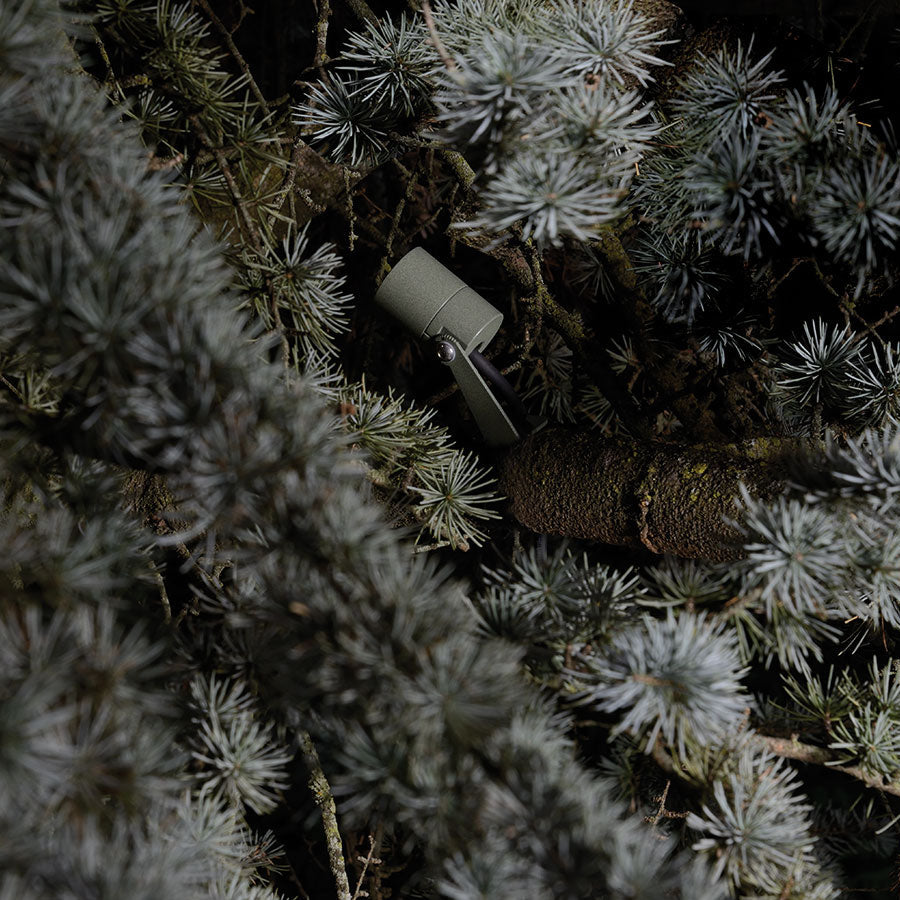

Family of 24Vdc outdoor projectors in four sizes, and wattages ranging from 2.5W to 25W. Ginko is the perfect choice for lighting plants and trees in gardens and parks, thanks to its range of different light outputs and its jasper green finish, conceived specifically for landscape design applications.

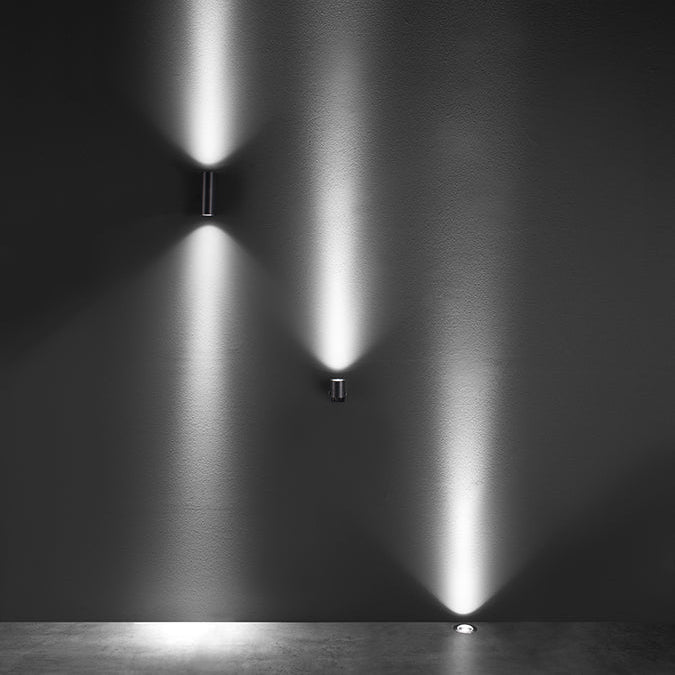

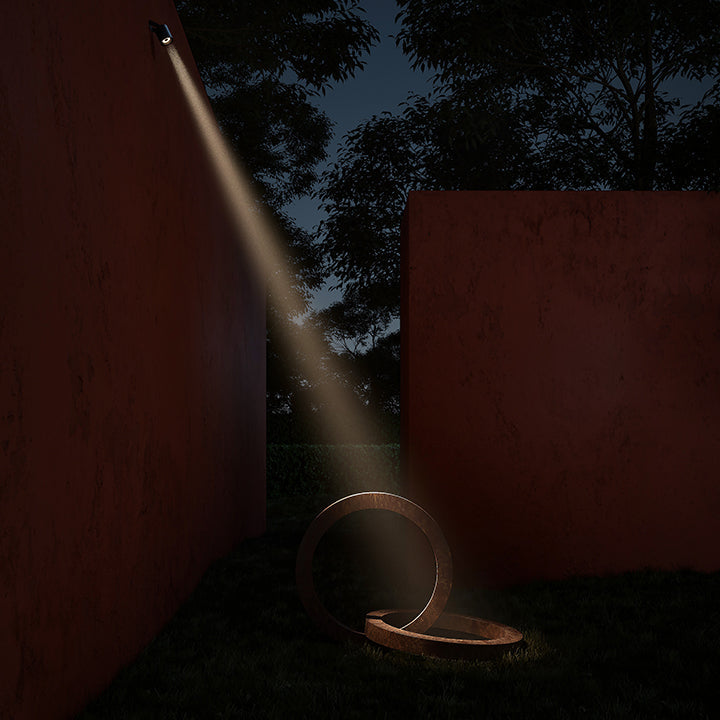

Ginko is also an excellent solution for architectural lighting of details and facades. Every version offers a wide range of optics, including very narrow 5° (Ginko 2.0) and 8° (Ginko 2.0 / 3.0), elliptical optics, and sharp optics for light beams with pin-sharp edges. On the 48° sharp optics, Ginko 3.0 can take a shadow-effect filter that recreates the natural dappled effect of light shining through foliage. The larger models have two types of elliptical optics, adjustable manually using a magnet. Finally, the Light Shaper optics of Ginko 3.5 enable the projection of different light shapes (circle, square, rectangle, parallelograms, irregular quadrilaterals, etc.) with pin-sharp contours, as well as the use of customized gobos.

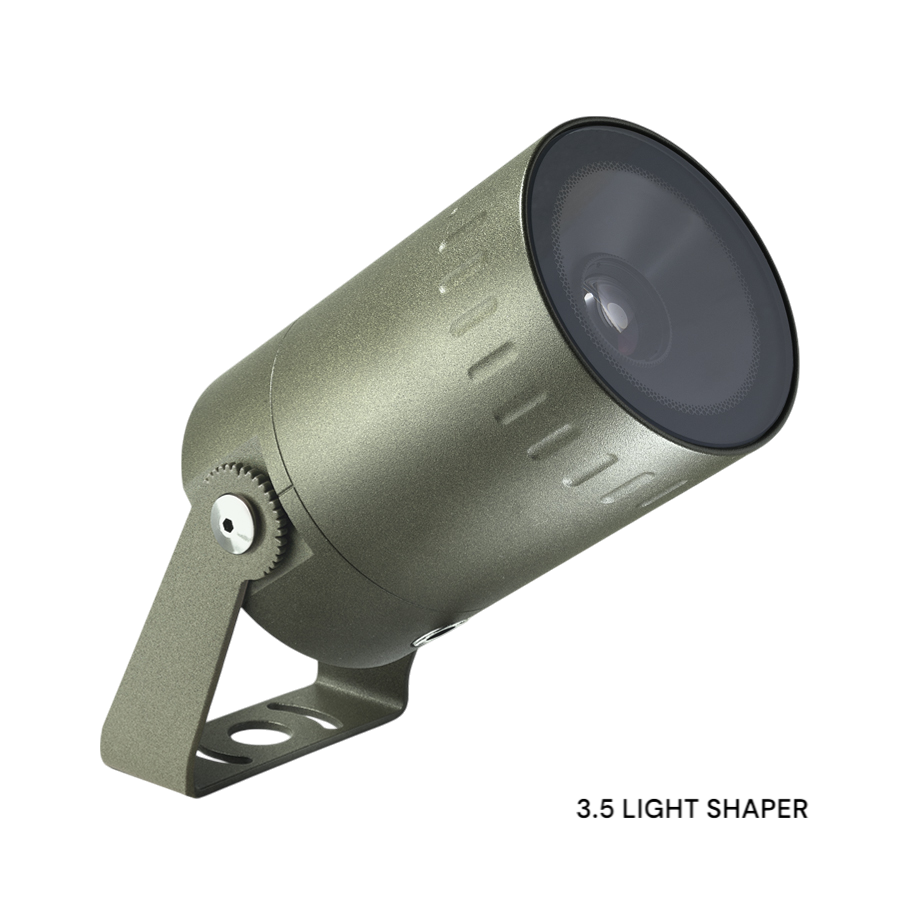

Ginko’s flexibility extends to the availability of versions with a manual zoom lens, to regulate the light output based on the object to be lit. The pad-printed graduations on the trim allow the optics’ opening angle to be set precisely.

Ginko projectors use High Intensity LEDs or COB LEDs, depending on the model, and allow multiple effects to be realised in various usage contexts, given the availability of RGBW (Ginko 3.3 / Ginko 4.3) and RGB (Ginko 2.2) versions alongside white light (2700K, 3000K or 4000K) versions. Ginko with white light offers a choice of CRI 80 and 90 for better colour rendering.

Ginko was awarded an IF Design Award 2019, a Muuuz International Award 2019 and a German Design Award 2020.
